Electronic cabinet smart lock

feature:
Anti-theft and anti-tampering design-high temperature lock core, ABS flame retardant material, stainless steel lock, all copper induction coil, glass fiber circuit board, imported chips, very power saving and stable, with excellent performance and stability
Easy to install-no need to drill holes in the door; 90KGs endurance!
Reliable quality-widely used in wardrobes, shoe cabinets, file cabinets, drawers, wine cabinets, furniture cabinets and other places that require safety.
Suitable for drawers, single doors, double doors, sliding wardrobe doors.
Buyers need to know: If the thickness of the door is more than 2.5 cm, please note, or contact customer service for instructions!
New home invisible cabinet lock cabinet closet sensor door lock electronic lock file cabinet inductive drawer is not visible (no holes required, only two batteries required)
Done before the shipment, the battery can be used to open the card!
Automatic pin lock cylinder, identification of EMTK4100 4200 card, automatic authorization, no software management, sub-management card, master card, guest card 3 permissions, card automatic lock core release automatically, plus elastic shrink rod to assist in opening the door, light operation to close the door The door only needs to be closed gently to lock it automatically.
ABS plastic parts are sealed and injection molded, waterproof, smash-proof, safe and reliable. Its motor life is more than 100,000 times, its split lock structure is easy to install, its inductance is less than 8 microamperes (static), and its dynamics is less than 150 mA. It is suitable for various wooden cabinets.
EM cabinet locking instructions (two batteries)
Zh

1. Card category:
1) Cards are divided into three categories: management cards and public keys
2) The management card is used to add and delete public keys, and the management card can be unlocked in any mode.
2. Setting function:
1) Initialization: Press and hold the switch button on the PCB for about 3 seconds. The buzzer will sound for a long time. The default is single open mode.
2) When the door lock is empty, you can directly set the management card, and only 3 cards can be set.
3) Change the operation mode. Press the button to switch the operation mode. The buzzer makes one sound, and two sounds indicate dual card mode.
4) After reading the management card, the door lock is opened and the buzzer sounds for a short time. In the meantime, ordinary keys can be added.
The first card added is the waiter card, the other cards are ordinary keys. If the addition is successful, it will ring once. If the added key already exists, it will ring twice, and when the store is full, it will ring four times.
5) During non-setup period, touch any invalid card, and then tap three times.
3. Clear function:
1) After reading the management card three times in a row, wait 5 seconds to delete all common keys
2) You can delete all management cards by reading the management card five times in a row.
3) Press and hold the switch button on the PCB for more than 3 seconds. The buzzer will sound for a long time and the door lock will be initialized. All set card information will be cleared.
4. Low voltage indication:
After touching the card, if a long beep sounds after unlocking, the battery voltage is low. At this point, the lock can be used about 50 times.
Please replace the battery in time.
Zh

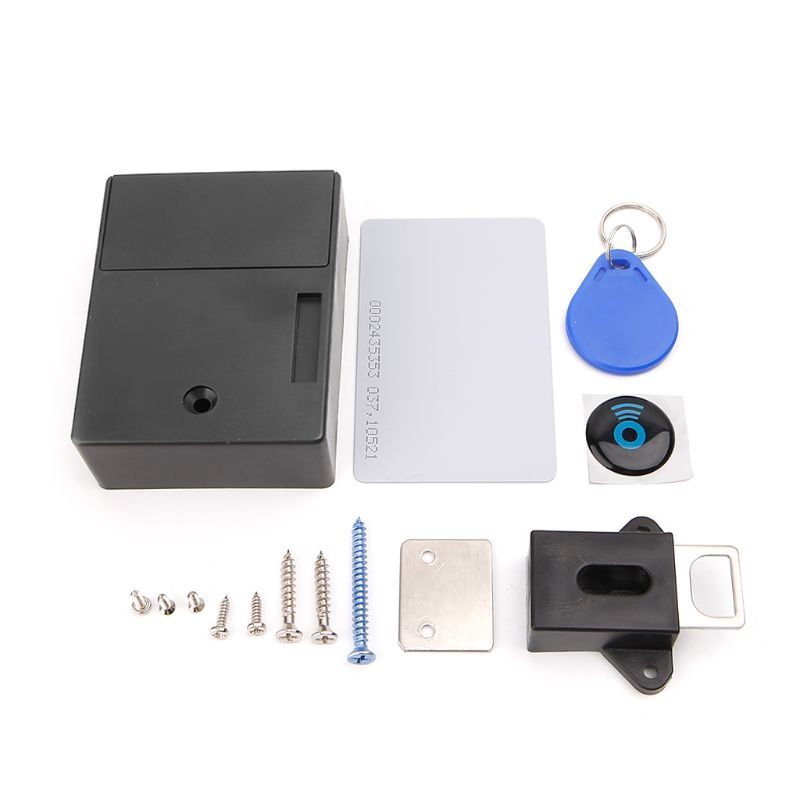

The package includes:
1 x lock (excluding battery)
1 IC card sensor
1 x pocket screw
3 x blue card sensors
